    Shop 2-Wire SAE 100R16 Hydraulic Hose (crosses with H425 & H245)

    When it comes to hose, we keep thousands of feet in stock at our warehouse. The brand that we use has been put to the test day after day, job after job, and has proven itself to be reliable and long lasting. This hose can be used with fittings that are designed to be crimped onto a 2 wire hose, regardless of the brand.

    This product is interchangeable with: Weatherhead H245, Parker 431, Continental XR16SC, Aeroquip GH781, Gates M2T, and all other 100R16 2 Wire hose brands.

    FREE SHIPPING ON ORDERS OVER $2,500

    Pressure Ratings for Hydraulic Hose

    The pressure rating for the hydraulic hose that we carry is as follows:

    SAE 100R16-04     (1/4" OR -04)  |  Working Pressure: 5,800 PSI  |  Burst Pressure: 23,200 PSI

    SAE 100R16-06 (3/8" OR -06)  |  Working Pressure: 4,785 PSI  |  Burst Pressure: 19,140 PSI

    SAE 100R16-08 (1/2" OR -08)  |  Working Pressure: 4,000 PSI  |  Burst Pressure: 16,000 PSI

    SAE 100R16-10 (5/8" OR -10)  |  Working Pressure: 3,625 PSI  |  Burst Pressure: 14,500 PSI

    SAE 100R16-12 (3/4" OR -12)  |  Working Pressure: 3,118 PSI  |  Burst Pressure: 12,472 PSI

    SAE 100R16-16 (1" OR -16)      |  Working Pressure: 2,393 PSI  |  Burst Pressure:   9,572 PSI

    Why is SAE 100R16 hose the best choice for hydraulic applications?

    • Higher Pressure rating than SAE 100R17 hose up to 3/4"

    • Tighter bend radius than SAE 100R2 allowing more flexibility

    • Durable exterior material that is built to last

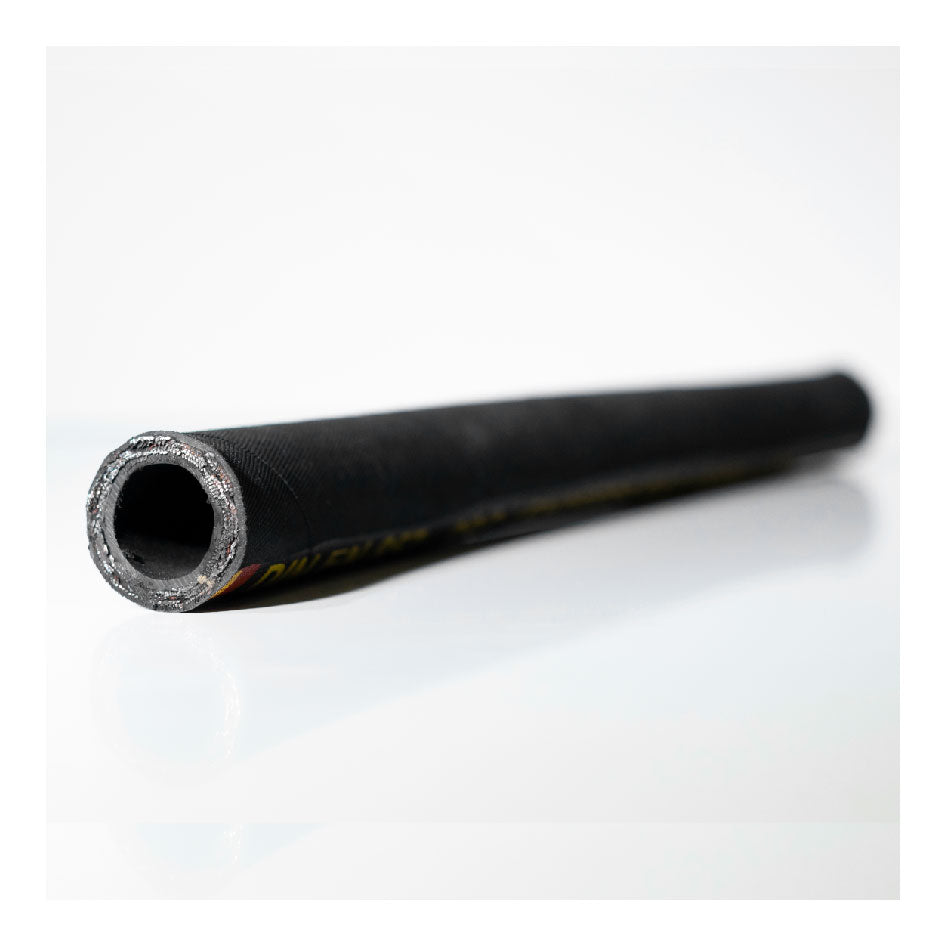

    100R16 Hose Sold Per Foot

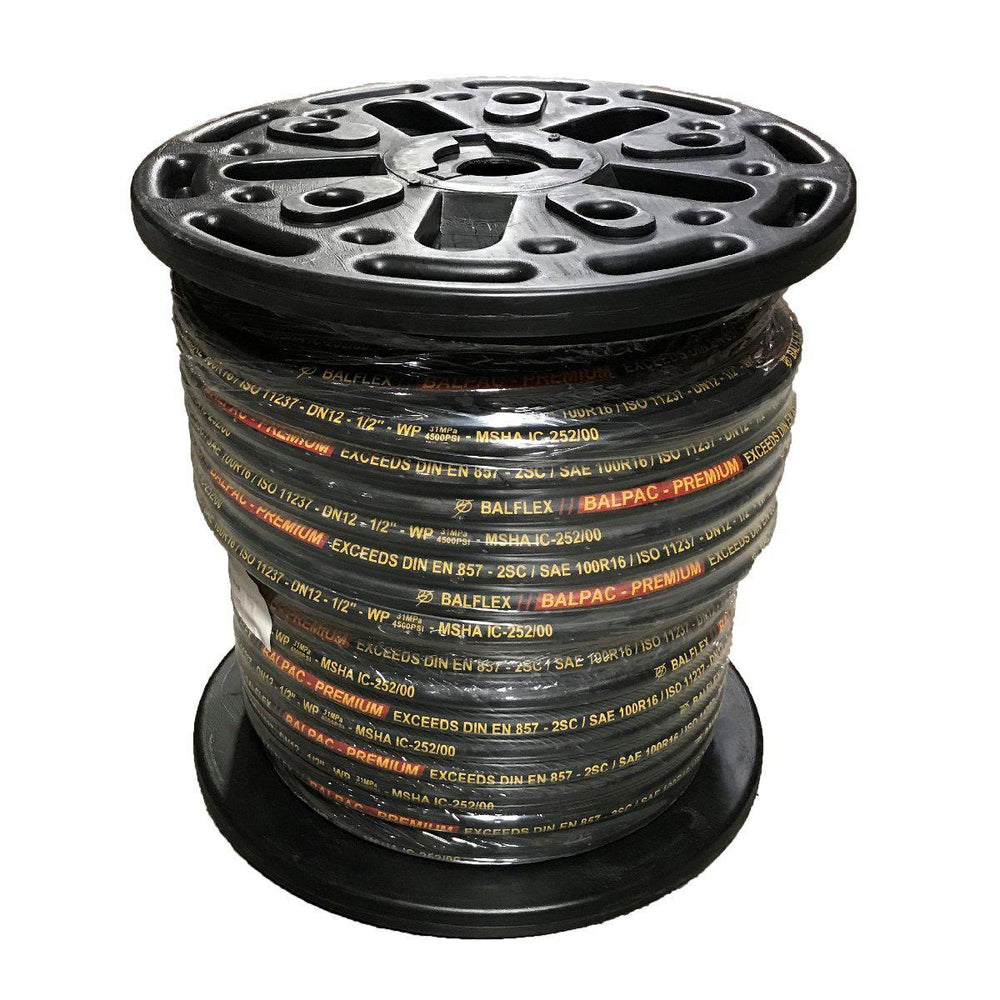

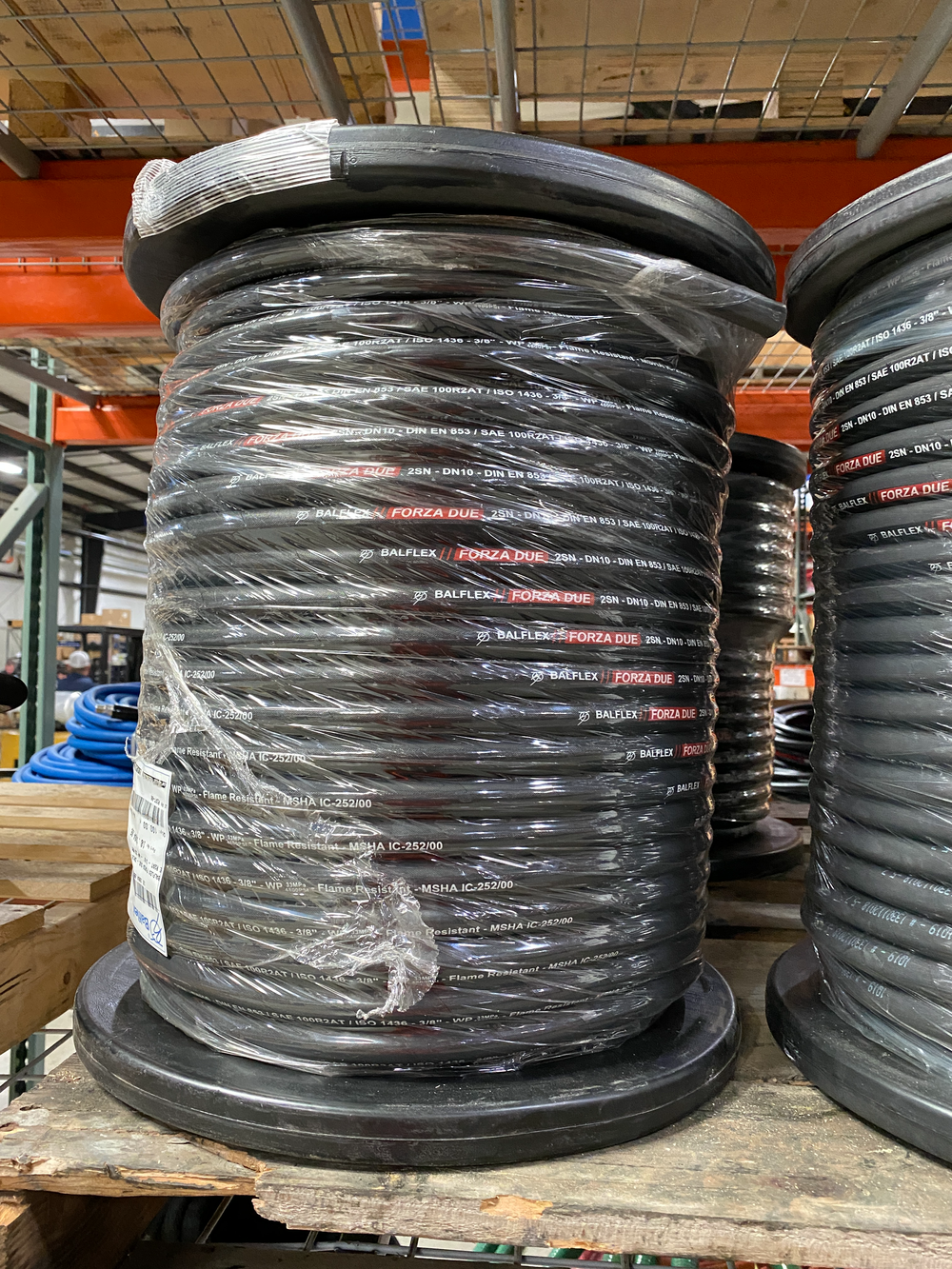

    100R16 Hose Sold Per Reel

    • 1/4" (-04)

    $ 1.33
    $ 396.88

    • 3/8" (-06)

    $ 1.79
    $ 547.76

    • 1/2" (-08)

    $ 1.99
    $ 613.36

    • 5/8" (-10)

    $ 2.92
    $ 460.84

    • 3/4" (-12)

    $ 3.02
    $ 475.60

    • 1" (-16)

    $ 4.29
    $ 683.88

    Need help choosing the right hose? Check out the article below.

    Choosing Hydraulic Hose
